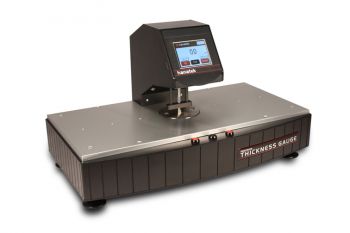

Precision Thickness Gauges

- - - Meets the international standards for testing film, paper, board, textile, tissue and many more
    - Repeatability of better than 0.4 μm
    - Choice of 0.1 or 0.01 μm resolution
    - User programmable number of readings, dwell time and down speed
    - Variable contact area and contact pressure
    - Metric or imperial units
    - Easy to use touch screen / integrated software
    - Optional date / time stamped results printer

Hanatek Precision Thickness Gauges

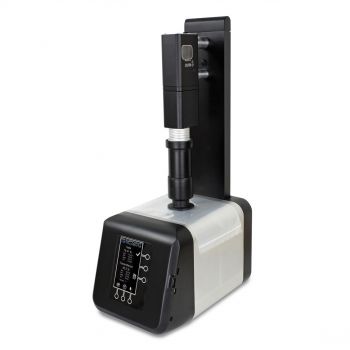

NEW Novo-Haze TX Transmission Hazemeter

- - - Measure total transmission and haze
    - Measure to ASTM D1003 (CIE C)
    - Suitable for plastic films and other transparent materials
    - Ideal for any laboratory or QA environment

Hanatek Hazemeter

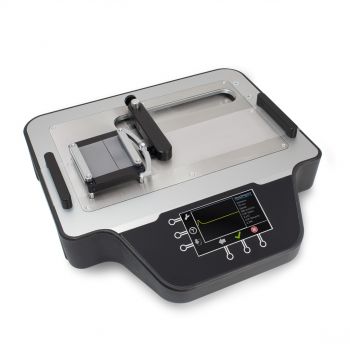

Compact Friction Tester

- - Measure static and dynamic friction of a variety of surfaces
  - Suitable for production / laboratory environments
  - Automated sled lowering and placement for more repeatable testing
  - Profile graph displayed in real time, static and dynamic COF figures given at the end of the test
  - Easy to use touch screen / integrated software
  - Optional date / time stamped results printer

Hanatek Compact Fricton Tester

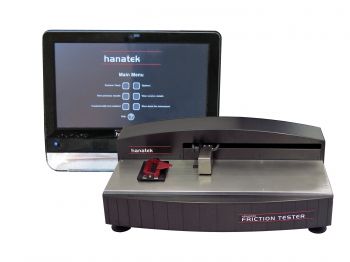

Advanced Friction Tester

- - Measure static and dynamic friction of a variety of surfaces
  - Automated sled lowering and placement for more repeatable testing
  - Profile graph displayed in real time, static and dynamic COF figures given at the end of the test
  - Pre-loaded with ASTM/TAPPI/ISO methods with the ability to create bespoke tests
  - Optional attachments provide the facility to conduct peel tests, tear tests and blocking tests
  - Detachable heated bed provides testing up to 110 ˚C

Hanatek Advanced Friction Tester

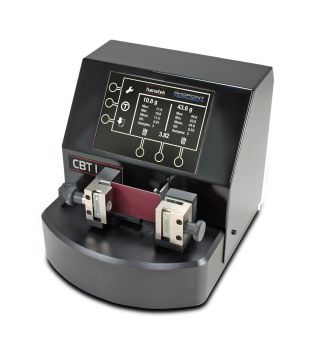

Crease and Board Stiffness Tester

- - Simple and accurate measurement of board stiffness and crease recovery
  - Measure crease resistance at 90˚
  - Measure board stiffness at 90˚
  - Automatic calculation of crease to stiffness ratio
  - Optional attachment for rounded corner packaging

Crease and Board Stiffness Tester

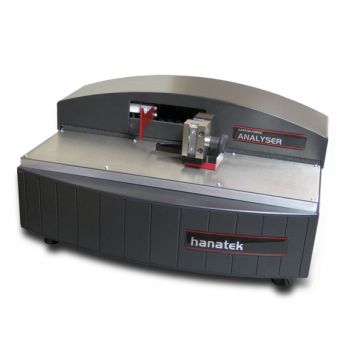

Carton Force Analyser

- - Measure the forces that limit the running speed of folding box board packaging
  - Measure carton opening force and carton erection force
  - The instrument allows individual creases to be analysed identifying problem areas in packaging design or manufacture
  - Touch screen operation for quick and easy use
  - Variable sample length, rotation speed & crease angle
  - Interactive help routines ensure little training is required to operate the device
  - Pre-loaded with ASTM/TAPPI/ISO methods with the ability to create bespoke tests

Carton Force Analyser

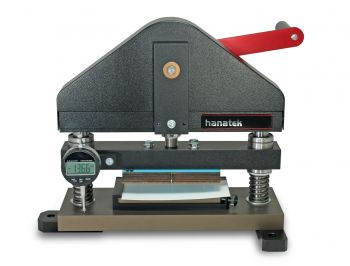

Carton Crease Proofer

- - Produce production quality crease samples (width and depth) without committing valuable machine time
  - Supplied with commercially produced rules and dies which are identical to those used on a full sized cut and crease machine

Carton Crease Proofer

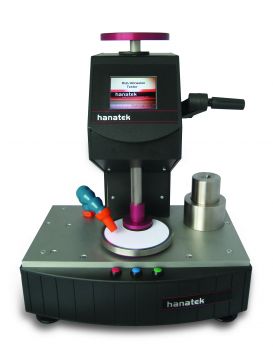

Rub Resistance Tester

- - Test the durability of inks and coatings on printed material
  - Fully automated touch screen operation
  - Choice of weights according to the severity of the test
  - Additional attachment for testing scratch and scuff resistance of printed material
  - Additional attachment for testing printed material for solvent resistance
  - Programmable test cycles allow tests be to performed unsupervised
  - Optional date / time stamped results printer

Rub Resistance Tester

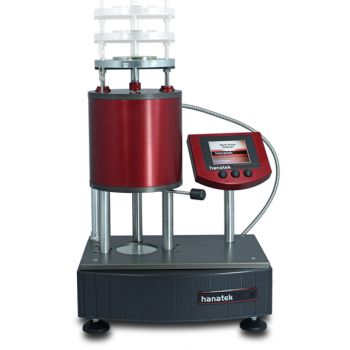

Melt Flow Indexer

- - Compliant to ASTM 1238 Part A, B & C
  - Calculate MFI, MVR, melt density, shear stress
  - Automatic calculation of test results
  - Automatic cleaning cycle

Melt Flow Indexer

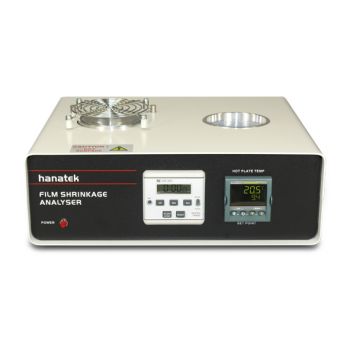

Film Shrink Tester

- - Determine the quality of cast and blown films
  - Measure unrestrained film shrinkage
  - Quick, clean, repeatable measurement

Film Shrink Tester
